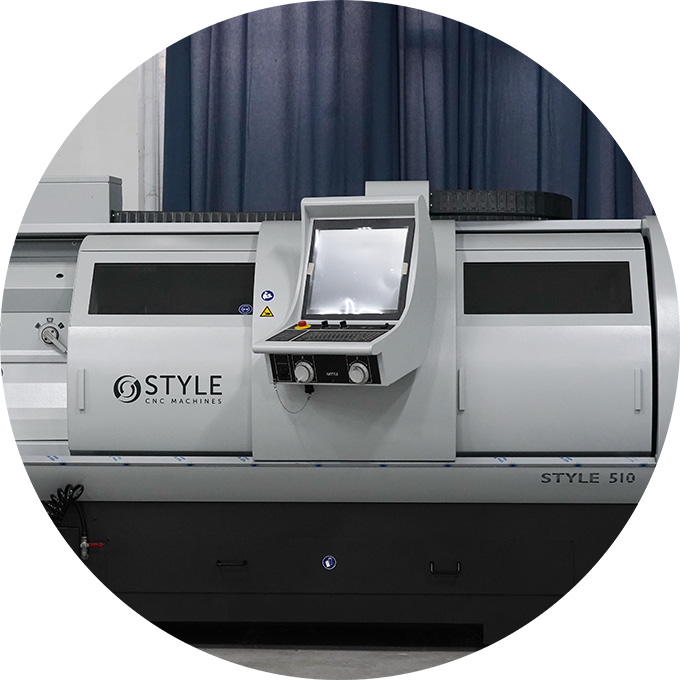

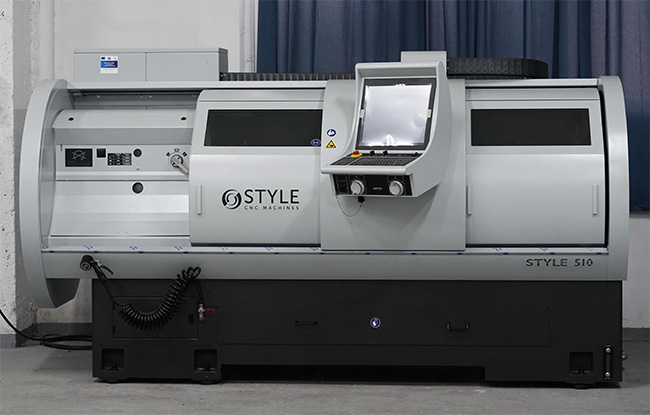

STYLE 510 CNC Lathe:
Precision and Power for Your Workshop
CNC lathes are advanced machine tools that utilize computer control to precisely manage the movement of cutting tools and workpieces. They are widely used across various industries, including automotive manufacturing, aerospace, and medical sectors.
Numerically controlled lathes are high-efficiency and high-productivity machines that significantly reduce production time. They ensure high-quality machining of individual parts made from aluminum, brass, stainless steel, and other metals, as well as components and assemblies from plastic materials.
The Ultimate Solution for:
Custom Manufacturing,
Small Batch Production,
Maintenance Work
Are you a turning specialist looking for a lathe that delivers speed, quality, and flexibility? Look no further than the STYLE 510 CNC Lathe, a robust and reliable machine designed to meet the demands of modern manufacturing.
This high-performance CNC lathe is perfect for custom manufacturing, small batch production, and maintenance tasks. Its advanced computer control system ensures precise management of cutting tools and workpieces, allowing you to achieve exceptional results with various materials, including aluminum, brass, stainless steel, and plastics.
Key Features and Benefits:
Uncompromising Stability

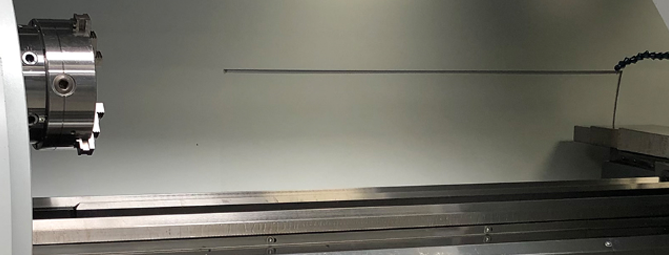

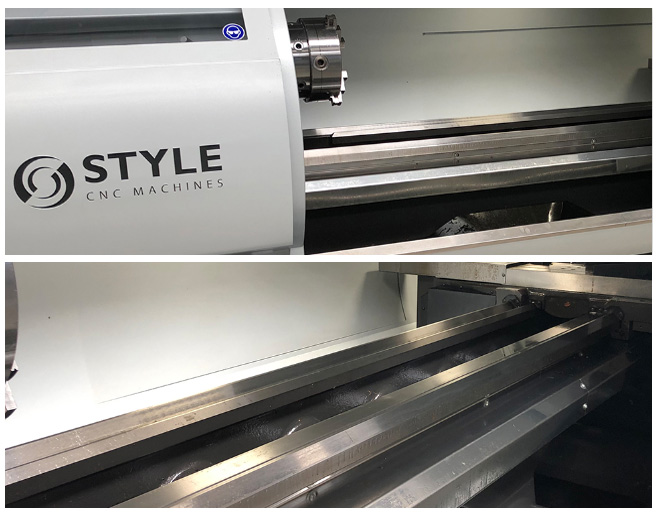

The STYLE 510 boasts an extremely stable cast iron machine frame, minimizing vibrations and ensuring superior precision.
Powerful Performance
Equipped with a high-torque gearbox and a heavy-duty main engine, this lathe delivers the power you need for demanding turning operations. Choose from motor options of 7.5, 11, or 15 kW (10.1 / 14.8 / 20.1 hp) to match your specific requirements.
Generous Capacity
With a spindle bore of 80/102 mm (3.15/4.02 in) and a distance between centers of 1350/1850 mm (53.15/72.83 in), the STYLE 510 can handle a wide range of workpieces. The 510 in its name refers to its impressive 510 mm (20.08 in) turning diameter over the bed. It also offers a 300 mm (11.81 in) turning diameter over the support.
Efficient Operation
This CNC lathe is designed for high efficiency and productivity, significantly reducing production time and ensuring consistent, high-quality machining.
Aditionally:
User-Friendly Control

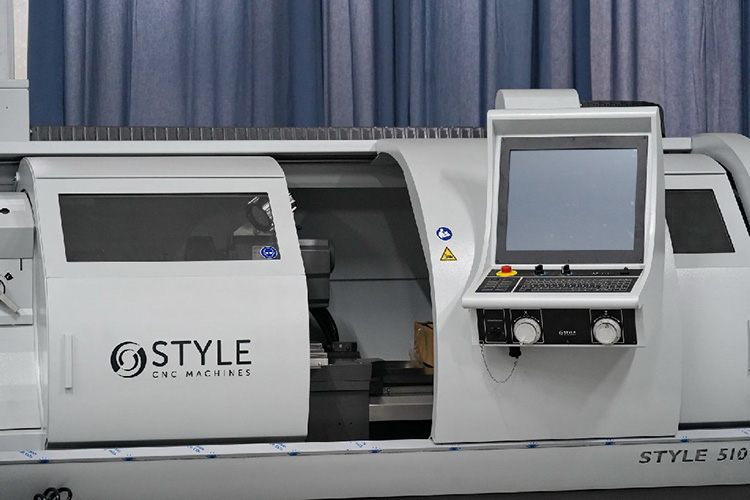

The STYLE 510 features the unique STYLE control system, making programming and operation simple and intuitive.
Enhanced Safety

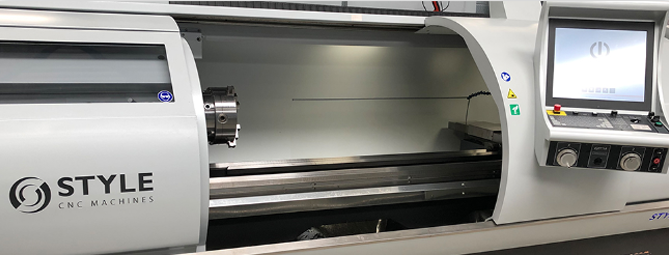

The fully enclosed design keeps chips and coolant contained, while the fully openable doors provide easy access for maintenance and setup.
Flexible Programming
Program your parts directly on the machine or remotely from your office network. You can also easily transfer programs via USB.

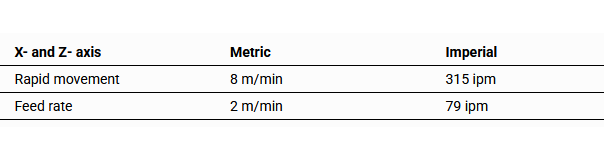

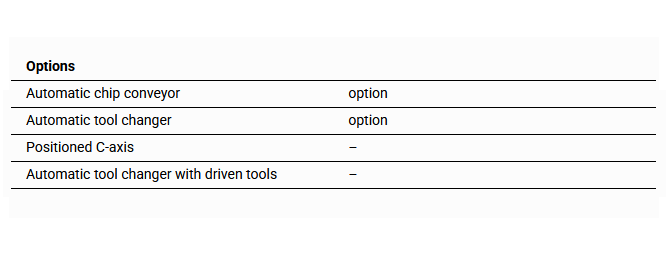

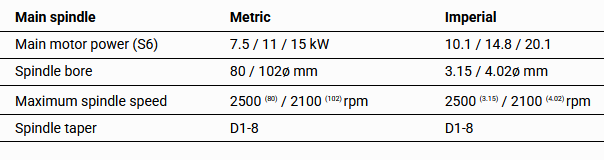

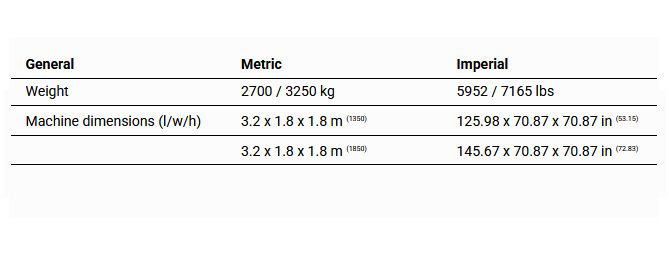

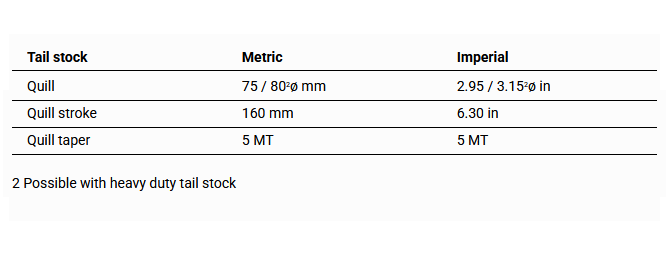

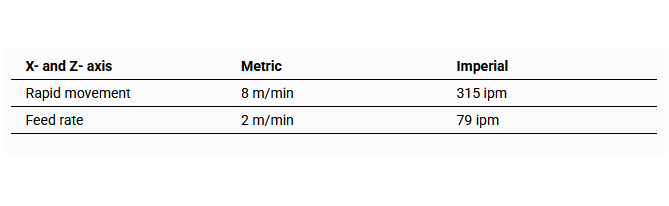

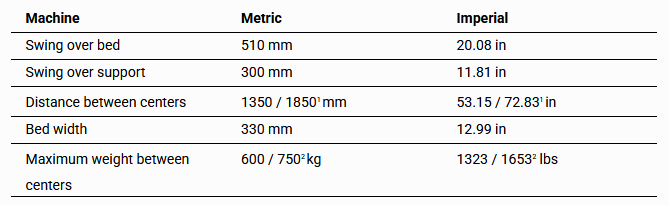

Technical Specifications:
- Cutting Diameter: 510 mm (20.08 in)
- Distance Between Centers: 1350 mm (53.15 in) (Optional 1850 mm / 72.83 in)
- Spindle Speed: 2500 rpm
- Motor Power: 7.5 kW (Optional 11 kW / 15 kW)
- Spindle Bore: 80/102 mm (3.15/4.02 in)
- Frame: Cast Iron
Contact Ayerom today
Get in touch to learn more about the STYLE 510 CNC Lathe and how it can transform your turning operations.
Our expert team will provide comprehensive installation and training to ensure you get the most out of your investment.
We are excited about the future of AYEROM and our commitment to expanding our capabilities.
Skilled Workforce
Our team consists of highly trained professionals with extensive experience in robotization and CNC machining. Their expertise ensures high precision, efficiency, and innovation, delivering top-quality results tailored to the automotive industry's demanding standards.
Precision and High Quality Metal Components

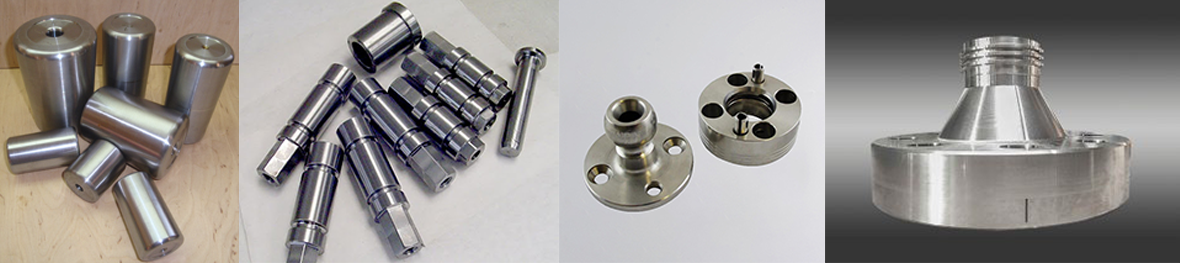

Utilizing state-of-the-art STYLE 510 CNC and MCV 5X machines, we manufacture metal components with exceptional accuracy and durability. Our advanced production techniques guarantee minimal waste and superior product consistency, meeting even the most stringent requirements.
