Five-Axis Vertical
Machining Center:
The MCV 1100 Series

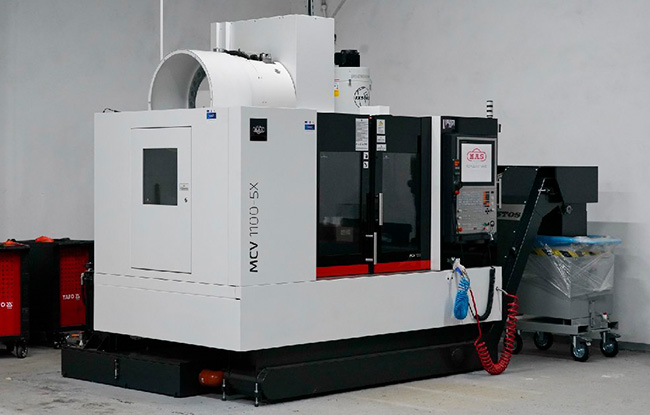

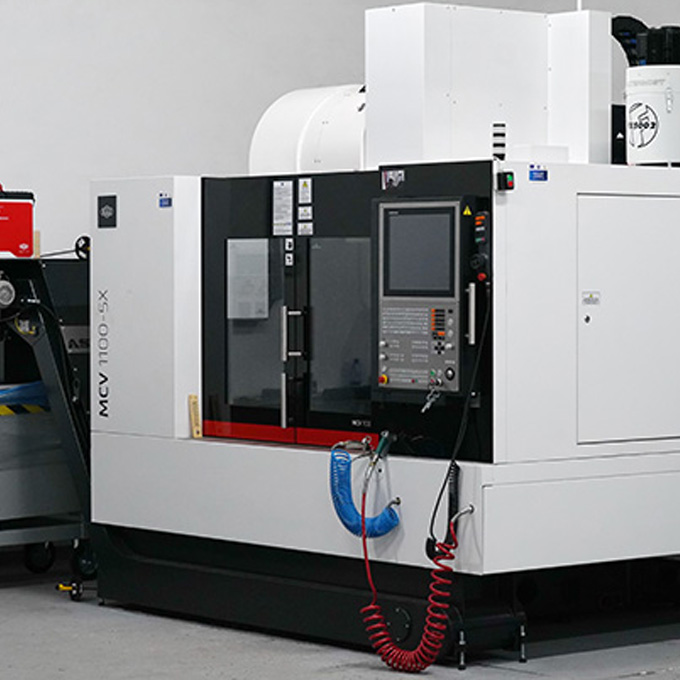

The MCV 1100 series represents a line of highly versatile and powerful 5-axis vertical machining centers (VMCs)
Engineered for precision and efficiency in metal machining, these machines are ideal for complex part manufacturing across various industries.
Advantages of 5-Axis Machining with the MCV 1100:
Greater Flexibility and Versatility
The ability to machine complex geometries and multiple sides of a part without repositioning provides greater flexibility
Increased Precision and Quality:
5-axis machining minimizes human error and ensures consistent, high-quality parts.
Improved Efficiency and Productivity
5-axis machining minimizes human error and ensures consistent, high-quality parts.
Reduced Lead Times
Faster machining and reduced setup times contribute to shorter lead times.
Applications:
These 5-axis CNC machines find applications in diverse sectors:
- Automotive: Manufacturing complex engine components, transmission parts, and other automotive components.
- Aerospace: Producing intricate parts for aircraft, including structural components, engine parts, and landing gear components.
More Applications:
These 5-axis CNC machines find applications in diverse sectors:
- Mold and Die Making: Creating high-precision molds and dies for various manufacturing processes.
- Prototyping: Rapidly producing prototypes with complex geometries.

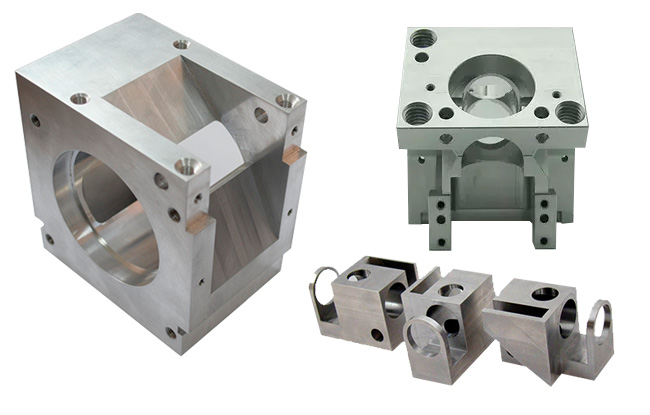

- General Manufacturing: Fabricating high-precision parts for a wide range of industries.
Key Features and Benefits:
5-Axis Machining:
Simultaneous movement across five axes (X, Y, Z, rotary, and tilting table) minimizes setups, reduces human error, improves consistency, and ensures high-quality processing of complex geometries.
Generous Working Envelope:
Linear axis travel of 880mm (X), 650mm (Y), and 520mm (Z) provides ample space for machining a variety of part sizes.
Robust Construction:
Built with durable materials to ensure stability and precision during demanding machining operations. The linear and rolling guides on the X, Y, and Z axes further contribute to long-term high working precision.
High-Speed Spindle:

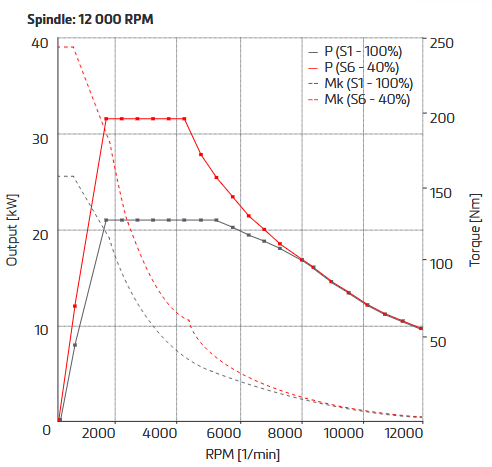

Spindle speeds of 10,000 / 12,000 / 15,000 min⁻¹ enable fast and precise machining, optimizing production times.
More Features and Benefits:
Rotary and Tilting Table (MAS):
The integrated rotary and tilting table enhances the 5-axis capabilities, allowing for complex multi-sided machining without repositioning the workpiece. Table clamping surface: Ø 520 mm, with a maximum table load of 400 kg.
Fast Tool Changes:
A mechanical arm tool magazine with 24 (40 optional) positions facilitates rapid tool changes, minimizing downtime and maximizing productivity.
Efficient Chip Removal:
Designed for efficient chip evacuation, maintaining a clean working environment and preventing chip buildup that could affect machining accuracy.
Direct Measurement:
Direct measurement systems ensure fast and precise positioning, contributing to the overall accuracy of the machining process.
High-Pressure Central Cooling:
The ability to utilize powerful tools with high-pressure central cooling allows for efficient machining of tough materials and enhances tool life.
Control Systems:
Available with advanced CNC control systems, including HEIDENHAIN TNC 640 and Sinumerik ONE, providing powerful programming and control capabilities.
Wide Range of Accessories:
A wide selection of special accessories is available to customize the machine for specific applications.
Technical Specifications:
- X / Y / Z – 880 / 650 / 520 mm
Table diameter: 520 mm - Max. load on the table: 400 Kg
- Max. spindle speed:
12 000 min-1 / 15 000 min-1 - Rollers linear guides at Z axis – increase
rigidity - Direct linear scales at each axis
Up to 40 tools ATC - Screw chip conveyor – output both
sides SDT - Cell chip conveyor – output both sides CDT
Looking for flawless CNC modeling results?
At Ayerom, we use state-of-the-art technology like MCV1100 machines to ensure the highest quality and precision in every project.
Contact us for a personalized quote!
